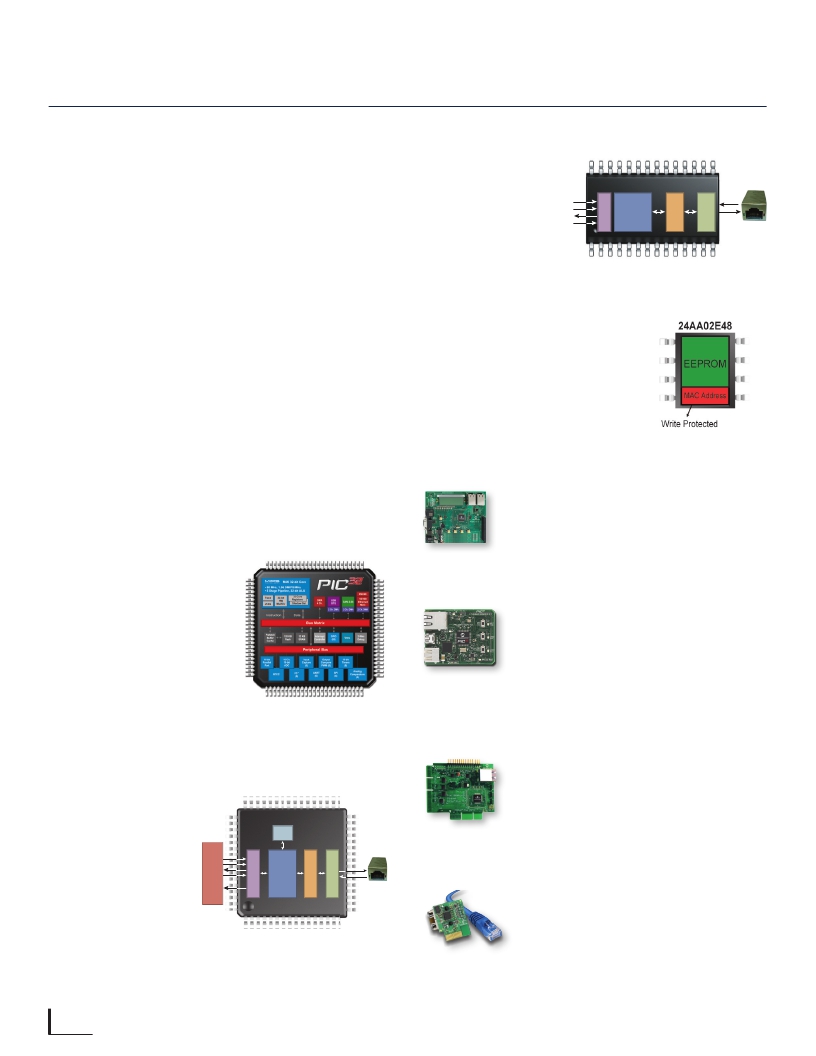

Ethernet Solutions with Integrated MAC and PHY

Offering the World's Smallest Embedded Ethernet Controller

■ 24 KB transmit/

receive buffer SRAM

■ MCU Interface

supported: SPI and

PIC32

MCU

MAC

PHY

8/16-bit parallel

■ 8 KB transmit/

ENC28J60

receive buffer SRAM

MAC

PHY

■ MCU Interface

A wide range of remote communication features are

possible when Ethernet connectivity is added to embedded

designs. For example, systems can be remotely monitored

using a web browser or email notification can be sent;

triggered by service alerts or low product inventory. End

users benefit through cost and time savings since they

can centrally monitor, control and service their embedded

systems over the Internet instead of physically being there.

Microchip’s Ethernet solutions address the growing

demand for embedded Ethernet products, enabling easy

network connectivity for cost-sensitive embedded designs.

■ Free and robust TCP/IP stack optimized for the PIC18,

PIC24 and PIC32 microcontroller and dsPIC digital

signal controller families

■ Supported protocols include: HTTP, SMTP, SNMP, FTP,

SNTP, SSL, TCP, UDP, IP, DHCP, DDNS, ICMP and ARP

PIC18F97J60 Ethernet PIC Microcontroller

■ PIC18F microcontroller with built-in Ethernet MAC

and 10 Base-T PHY

■ 8 KB dedicated Ethernet Buffer RAM

■ Up to 128 KB Flash

■ Advanced analog and communication peripherals

■ Available in 64-, 80- and 100-pin TQFP

PIC32MX6XX, PIC32MX7XX Ethernet

PIC?Microcontroller

■ Integrated 10/100 Mbit

Ethernet MAC

■ Dedicated DMA interface

for direct access to the

entire system RAM

■ Industry standard RMII/

MII interface to PHY

■ Pre-programmed

MAC address

■ 80 MHz, up to 512 KB

Flash, up to 128 KB RAM

■ Available in 64-pin (TQFP, QFN) and 100-pin (TQFP, BGA)

ENC624J600, ENC424J600 Embedded

Ethernet Controllers

■ Integrated MAC and

10/100 Base-T PHY

ENC624J600

Security

Engines

10/100 Mbps

Ethernet

PIC18

PIC24

TX/RX

Buffer

dsPIC ?

DSC

■ Cryptographic

Security Engines

■ Pre-programmed

unique MAC address

■ Available in 44-pin (TQFP, QFN) and 64-pin (TQFP)

ENC28J60 Embedded Ethernet Controller

■ Integrated MAC and

10 Base-T PHY

10 Mbps

Ethernet

TX/RX

Buffer

Supported: SPI

■ Available in 28-pin

SPDIP, SSOP, SOIC

and QFN packages

MAC Address Chips

■ Pre-programmed EUI-48?

and EUI-64? node address

■ Up to 1.5 Kb Serial EEPROM

functionality

SPI: 25AA02E48

I 2 C?: 24AA02E48

UNI/O?: 11AA02E48

www.microchip.com/MAC

Development Tools Support

PICDEM.net? 2 Development Board (DM163024)

This Ethernet development board supports

both the ENC28J60 controller and the

PIC18F97J60 MCU. With this board and

Microchip’s free TCP/IP stack, a web server

can be developed showcasing the capability to remotely

monitor and control embedded applications over the Internet.

PIC32 Ethernet Starter Kit (DM320004)

Contains everything needed to develop

Ethernet or USB peripheral/Host/OTG

applications using the PIC32. The kit

contains free Microchip TCP/IP software

and the necessary cables. There is an

integrated debugger/programmer on the board as well as

an expansion connector.

Fast 100 Mbps Ethernet PICtail Plus Daughter

Board (AC164132)

Populated with the ENC624J600,

this Ethernet board interfaces to the

RJ-45 connector. It can be plugged into

the Explorer 16 development board

(DM240001) and the PIC18 Explorer board

(DM183032) allowing connection to any of Microchip’s

8-,?16- and 32-bit products.

Ethernet PICtail Plus Daughter Board (AC164123)

This board is populated with the 28-pin

ENC28J60 Ethernet controller which

interfaces to the RJ-45 connector. It can be

plugged into the Explorer 16 development

board (DM240001), allowing connection

to any of Microchip’s 16- and 32-bit products when used in

conjunction with the free Microchip TCP/IP stack.

4

Connectivity Solutions

www.microchip.com/ethernet
